Adhesive Label Gluers

Automatic Adhesive Label Gluers

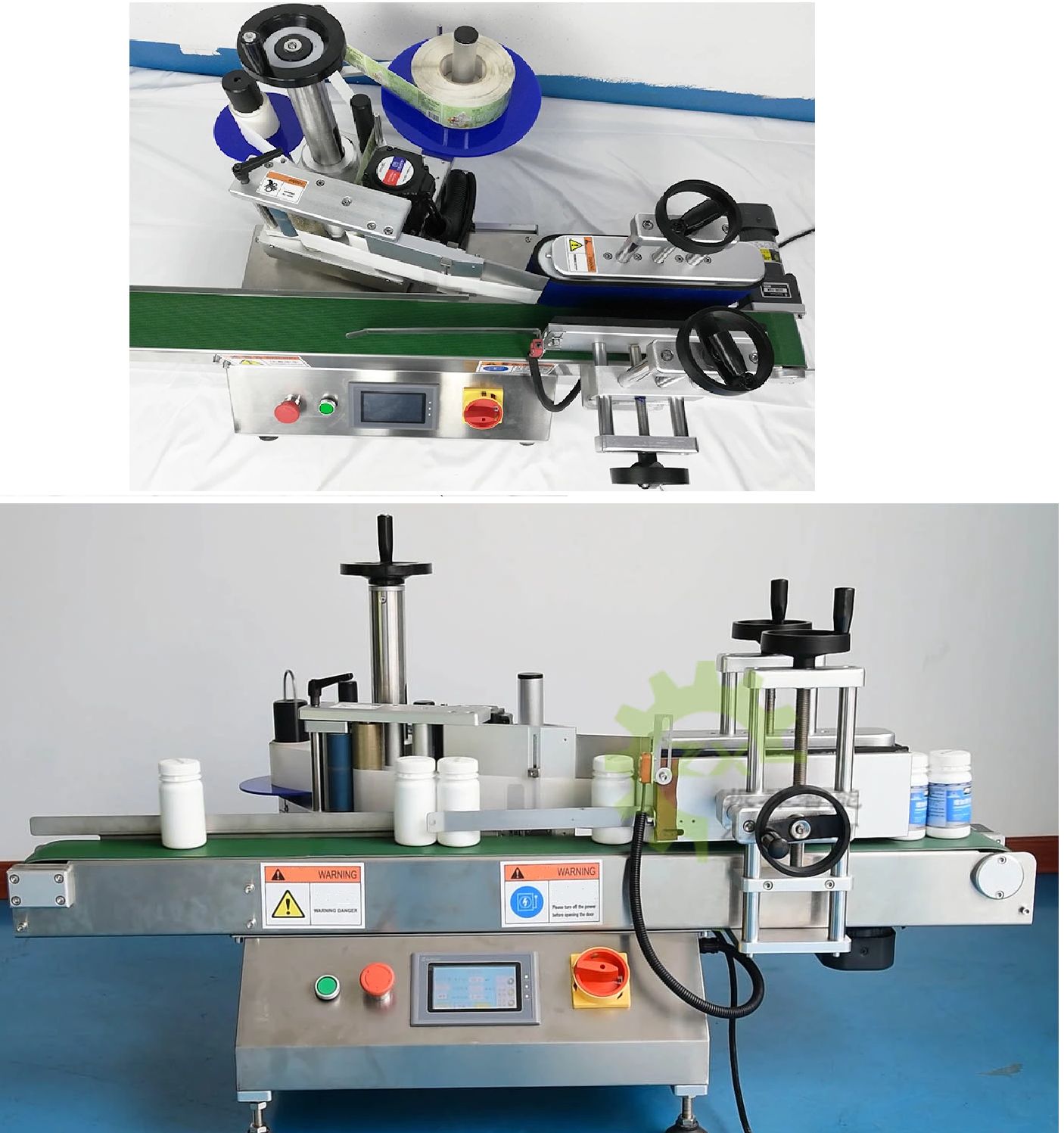

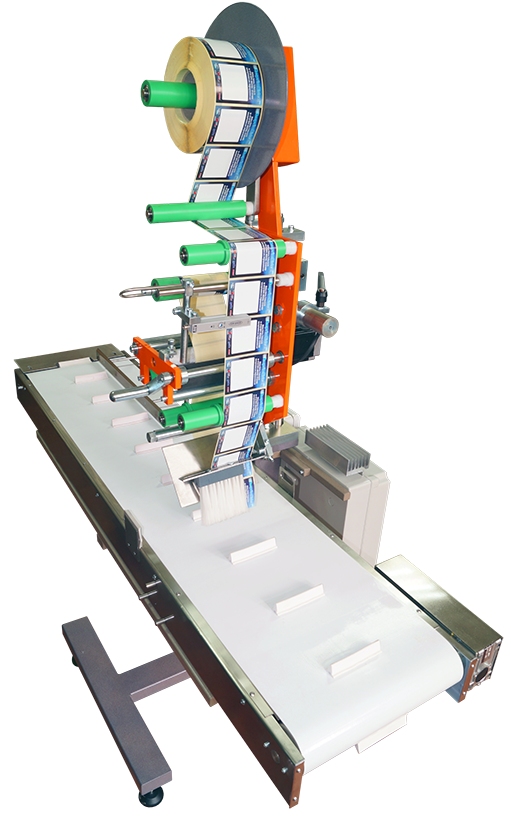

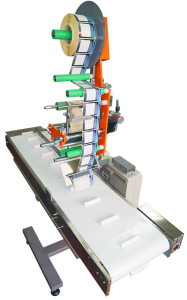

Automatic adhesive label gluers with a reachable gluing width of up to 150 mm. They are also manufactured according to the widths required by the client. Integrated unwinders for large rolls of adhesive labels, high speed, ensure maximum efficiency for convenient adhesive label application, i.e., convenient product marking and excellent traceability. If necessary, a printing module can be integrated, which can mark only static text or date. Otherwise, a printing module with an Ethernet interface can be mounted, capable of printing any information, making it simple to use for data transfer. Typically, the carrying block of the gluing device system is made of a sturdy, solid aluminum plate structure and is suitable for high loads, as it is industrial equipment. Suitable for use in the food industry. We offer an adhesive labeling system for cylindrical products. It is designed to apply both paper and PP adhesive labels on glass, plastic, or metal containers. The maximum product diameter is up to 100mm, with a productivity of up to 30 products/min. It is a simple and inexpensive gluing system consisting of a label gluer, a horizontal feed conveyor, and a vertical rotation conveyor. Semi-automatic adhesive label gluing equipment for applying labels to cylindrical objects.

Technical specifications: Model: MA150 Labeling speed: 20-40 pcs per minute Bottle diameter: Φ15-120 mm Minimum label size: width 26 mm * length 25 mm Max. Label size: width 140 mm * length 300 mm Maximum outer diameter of label roll: Φ300 mm Inner diameter of label roll: Φ75mm Label gluing accuracy: ±0.5 mm Voltage: 220V, 50/60Hz, 100W
